-20°C～40°C Cold Storage
DC Inverter Refrigeration Unit for Cold Room
- DC Inverter, Reversible System
- -20 ° C～40 ° C wide temperature range refrigeration.
- Hot Gas technology saves about 50% energy than the normal electric heating defrosting.
- The temperature fluctuation of the hot gas defrosting is within 1 ° C, extending longer food preservation time.
- Precision Temperature Controlling at ± 0.5 ° C, more precise temperature control to extend preservation time.
| Model | YLDR030DWf | YLDR040DWf | YLDR130DWf | YLDR220DWf | ||
| Cooling Storage Area | m³ | 18~30 | 24~40 | 65~130 | 90~220 | |
| Indoor Unit Model | - | YLR1500Df | YLR3000Df | YLR4500Df | YLDR6500Df | |

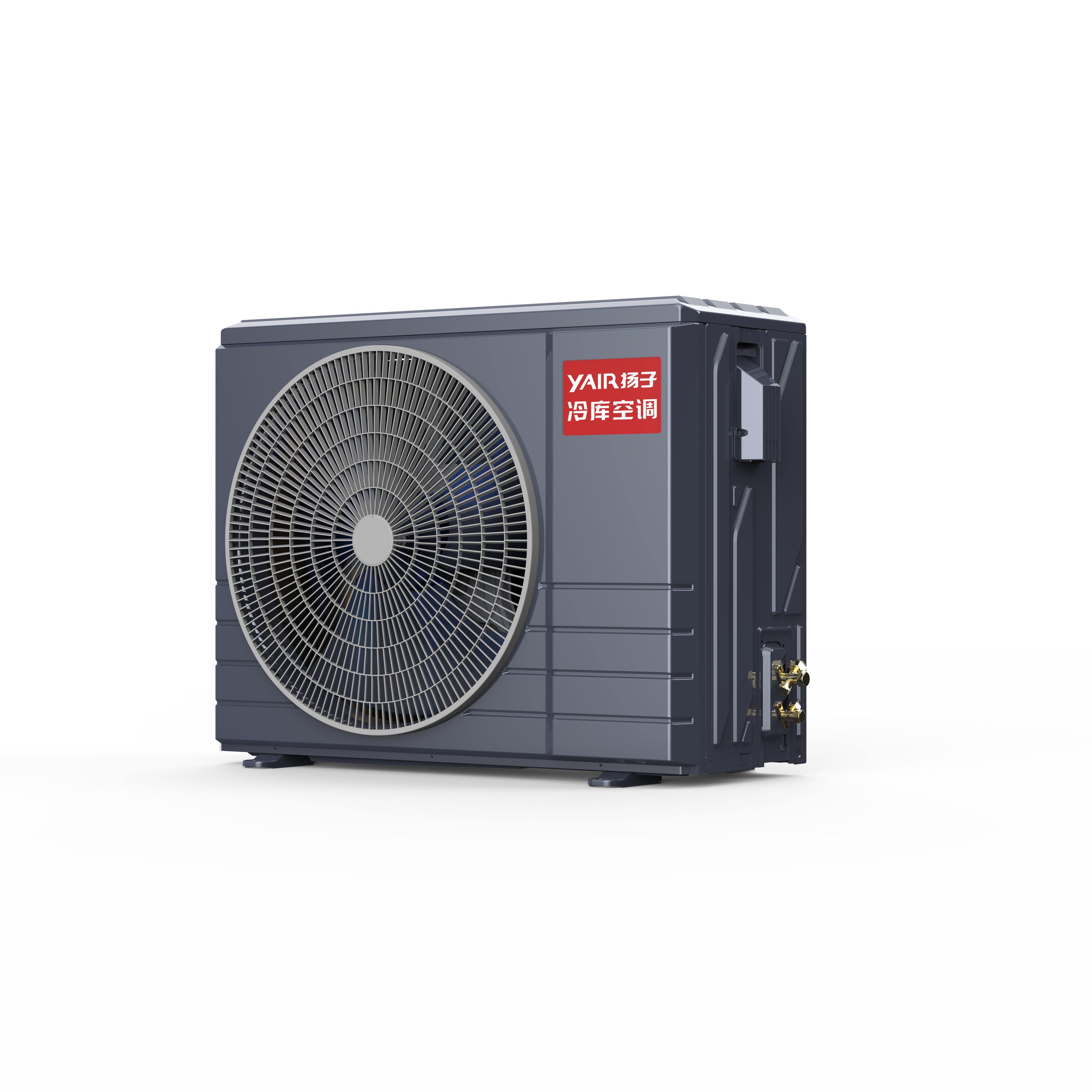

| Main Unit Model | - | YLDR030Wf | YLDR040Wf | YLDR130Wf | YLDR220Wf | |
| Cooling Capacity | W | 3600（400~3600） | 4800（600~4800） | 8600（800~8600） | 24000(1200~240000) | |
| Norminal Condition | ℃ | 10℃/32℃ | 10℃/32℃ | 10℃/32℃ | 10℃/32℃ | |
| Store Room Temp.Range | ℃ | 40℃~-20℃ | 40℃~-20℃ | 40℃~-20℃ | 40℃~-20℃ | |
| Ambient Temp.Range | ℃ | (-30℃~65℃) | (-30℃~65℃) | (-30℃~65℃) | (-30℃~65℃) | |
| Power Supply | V/Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | |
| Max Input Power | W | 1500（250~1500） | 2000（350~2000） | 2500（350~2500） | 6000（800~6000） | |
| Max.Input Current | A | 6.9 | 9.2 | 11.4 | 27.5A | |
| Refrigerant Type | - | R32 | R32 | R32 | R32 | |
| Refrigerant Weight | g | 980 | 1280 | 1850 | 2.75 | |
| Main Unit Noise Level | dB（A） | 52 | 53 | 55 | 68 | |
| Main Unit Flow Volume | m³/h | 1700 | 2200 | 3200 | 6500 | |
| Connect Pipe Size | mm | Φ6/Φ9 | Φ6/Φ12 | Φ6/Φ12 | Φ9/Φ16 | |
| Throttling method | - | Electronic expansion valve | ||||
| Connecting Type | - | Threaded Connection | ||||
| Main Unit size | mm | 797*556*336 | 870*558.5*352.5 | 988*714.5*412.5 | 1055*879*488 | |
| Main Unit Weight | kg | 28 | 30 | 44 | 86 | |

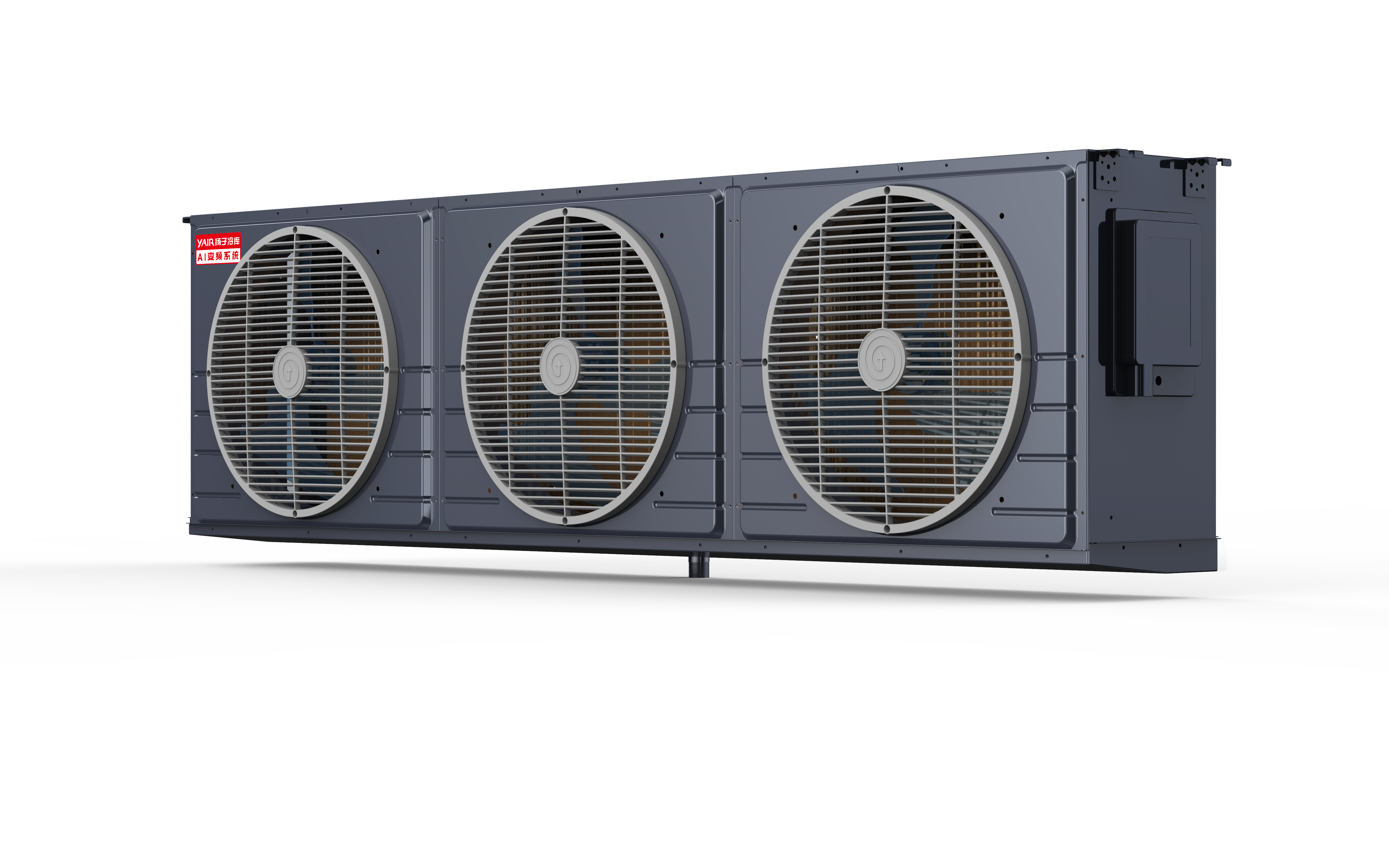

| Indoor Unit Model | YLR1500Df | YLR3000Df | YLR4500Df | YLDR4500Df | ||
| Fan | Air Flow Volume | m³/h | 1500 | 3000 | 4500 | 6500m |
| Power Supply | V/Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | |
| Fan Input Power | W | 70 | 140 | 210 | 240 | |
| Size | W | mm | 802.5 | 1118.5 | 1633 | 1618.5 |
| D | mm | 293 | 293 | 293 | 365.5 | |
| H | mm | 532 | 532 | 532 | 720 | |
| Net weight | kg | 14 | 24 | 34 | 45 | |
| Pipe | Liquid Pipe | mm | Φ6 | Φ6 | Φ6 | Φ9 |
| Gas Pipe | mm | Φ9 | Φ12 | Φ12 | Φ16 | |
